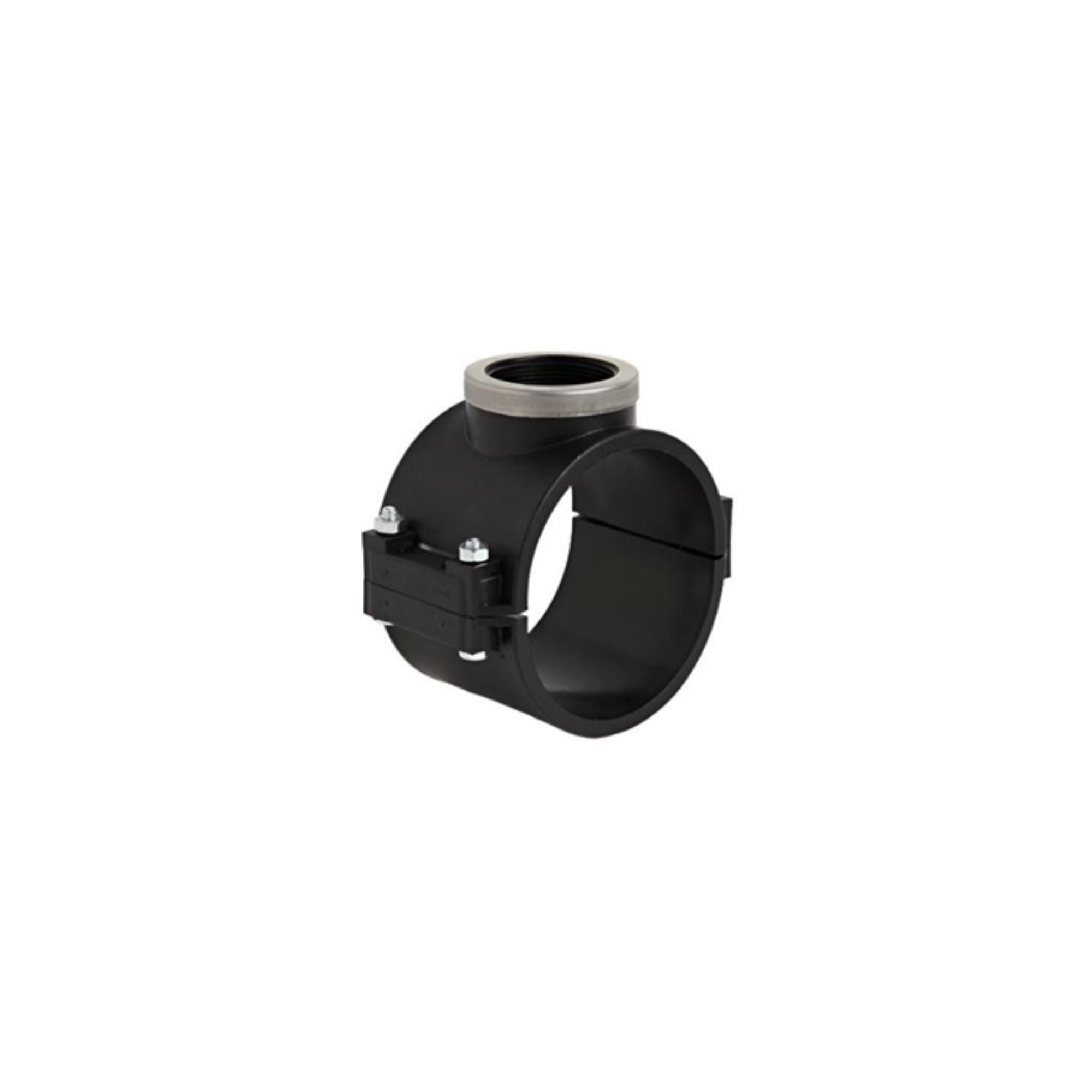

Clamp Saddle with Reinforcing Ring

Clamp Saddle with Reinforcing Ring

Technical Details

Clamp saddles are mainly used to connect branch pipes to a main water line without cutting the pipe. Our clamp saddles are made from UV-stabilized, high-impact black polypropylene with option of reinforcing rings.

Standard ISO 17885 / DIN 8076

Code Dia PN Price (Pc) Box (Pcs) Sacks (Pcs)
37025012 25×1/2″ 16 500 400
37025034 25×3/4″ 16 500 400
37032012 32 x 1/2″ 16 300 270
37032034 32 x 3/4″ 16 300 270
37032100 32 x 1″ 16 300 220
37040012 40 x 1/2″ 16 300 200
37040034 40 x 3/4″ 16 300 200
37040100 40 x 1″ 16 250 180
37050012 50 x 1/2″ 16 120 85
37050034 50 x 3/4″ 16 120 85
37050100 50 x 1″ 16 120 85
37050114 50 x 1 1/4″ 16 110 80
37050112 50 x 1 1/2″ 16 110 80
37063012 63 x 1/2″ 16 90 85
37063034 63 x 3/4″ 16 90 85
37063100 63 x 1″ 16 90 85
37063114 63 x 1 1/4″ 16 80 65
37063112 63 x 1 1/2″ 16 80 65
37063200 63 x 2″ 16 80 65
37075012 75 x 1/2″ 16 100 70
37075034 75 x 3/4″ 16 100 70
37075100 75 x 1″ 16 100 70
37075114 75 x 1 1/4″ 16 100 50
37075112 75 x 1 1/2″ 16 80 50
37075200 75 x 2″ 16 80 50
37090012 90 x 1/2″ 16 80 50
37090034 90 x 3/4″ 16 80 50
37090100 90 x 1″ 16 80 50
37090114 90 x 1 1/4″ 16 64 45
37090112 90 x 1 1/2″ 16 64 45
37090200 90 x 2″ 16 64 45
37110012 110 x 1/2″ 16 60 35
37110034 110 x 3/4″ 16 60 35
37110100 110 x 1″ 16 60 35
37110114 110 x 1 1/4″ 16 60 35
37110112 110 x 1 1/2″ 16 60 35
37110200 110 x 2″ 16 50 35
37110212 110 x 2 1/2″ 10 25 20
37110300 110 x 3″ 10 25 20
37125012 125 x 1/2″ 10 60 35
37125034 125 x 3/4″ 10 60 35
37125100 125 x 1″ 10 60 35
37125114 125 x 1 1/4″ 10 50 32
37125112 125 x 1 1/2″ 10 50 32
37125200 125 x 2″ 10 50 32
37140012 140 x 1/2″ 10 40 20
37140034 140 x 3/4″ 10 40 20
37140100 140 x 1″ 10 40 20
37140114 140 x 1 1/4″ 10 40 20
37140112 140 x 1 1/2″ 10 40 20
37140200 140 x 2″ 10 40 20
37160012 160 x 1/2″ 10 24 18
37160034 160 x 3/4″ 10 24 18
37160100 160 x 1″ 10 24 18
37160114 160 x 1 1/4″ 10 24 18
37160112 160 x 1 1/2″ 10 24 18
37160200 160 x 2″ 10 24 18
37160212 160 x 2 1/2″ 10 12 10
37160300 160 x 3″ 10 12 10
37200100 200 x 1″ 10 9 7
37200114 200 x 1 1/4″ 10 9 7
37200112 200 x 1 1/2″ 10 9 7
37200200 200 x 2″ 10 9 7
37225100 225 x 1″ 10 9 6
37225114 225 x 1 1/4″ 10 9 6
37225112 225 x 1 1/2″ 10 9 6
37225200 225 x 2″ 10 9 6
37250100 250 x 1″ 10 6 5
37250114 250 x 1 1/4″ 10 6 5
37250112 250 x 1 1/2″ 10 6 5
37250200 250 x 2″ 10 6 5
