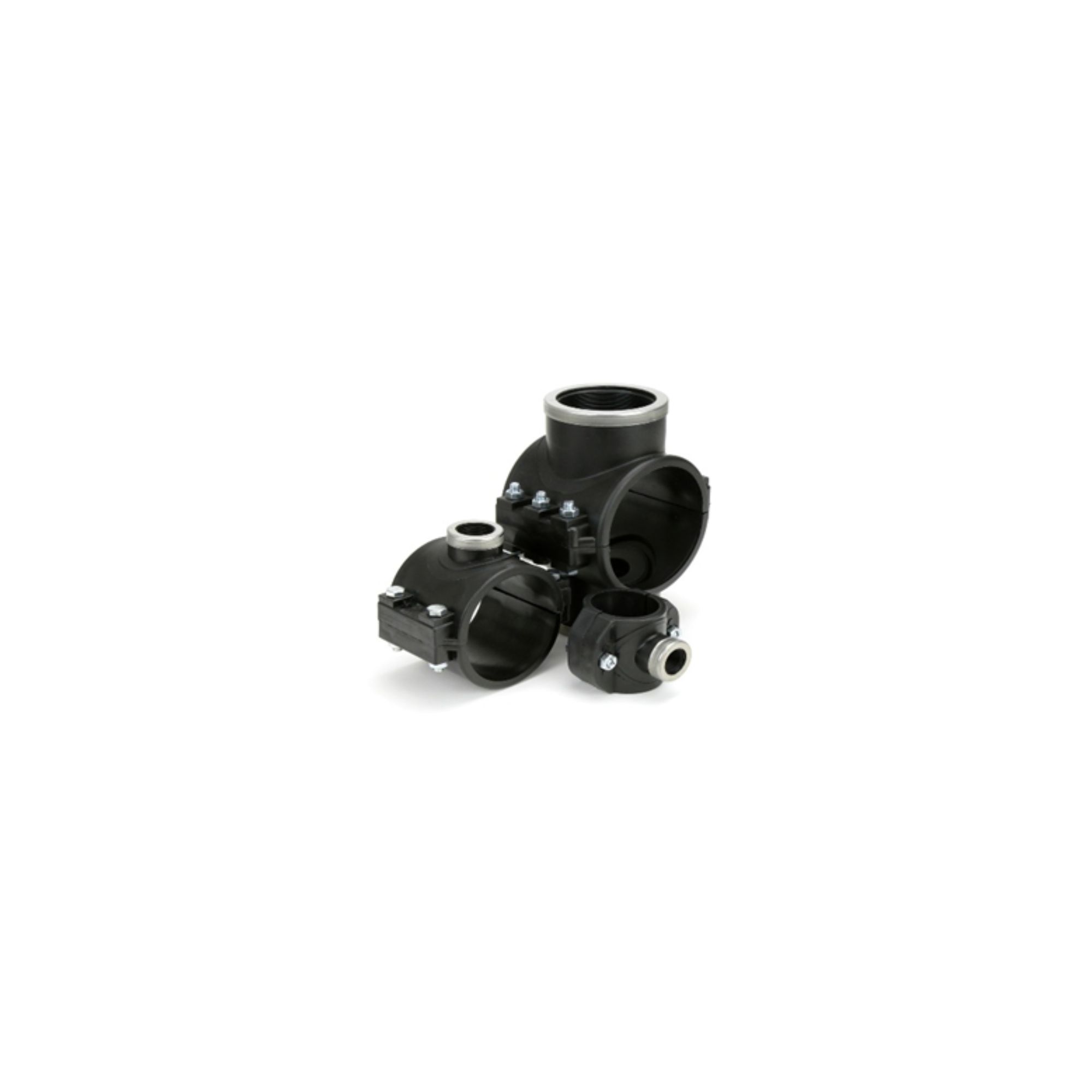

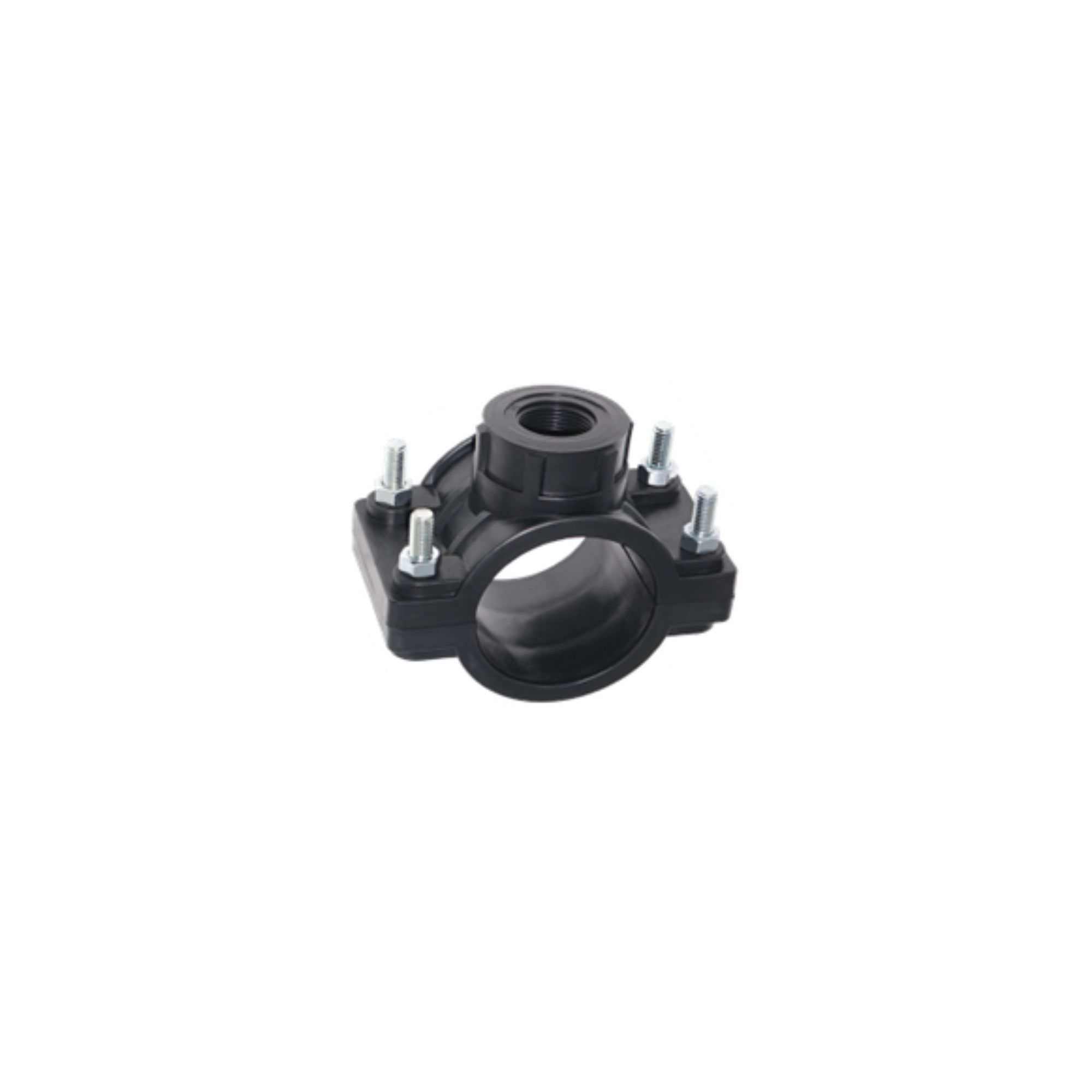

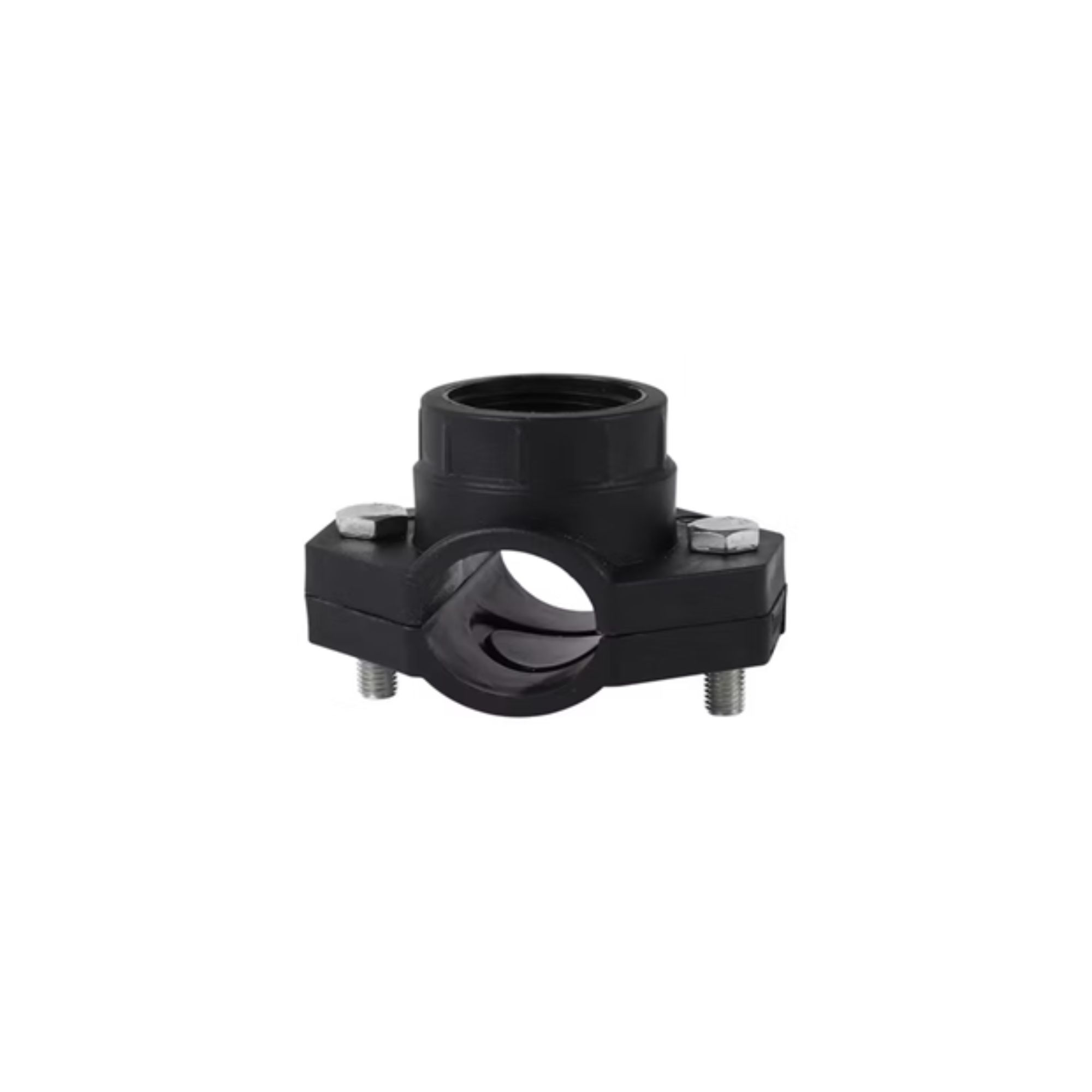

Clamp Saddle
Clamp Saddle - Image 2
Clamp Saddle - Image 3

Clamp Saddle

Technical Details

Clamp saddles are mainly used to connect branch pipes to a main water line without cutting the pipe. Our clamp saddles are made from UV-stabilized, high-impact black polypropylene with option of reinforcing rings.

Standard ISO 17885 / DIN 8076

Code Dia PN Price (Pc) Box (Pcs) Sacks (Pcs)
38025012 25×1/2″ 16 500 400
38025034 25×3/4″ 16 500 400
38032012 32 x 1/2″ 16 300 270
38032034 32 x 3/4″ 16 300 270
38032100 32 x 1″ 16 300 270
38040012 40 x 1/2″ 16 300 220
38040034 40 x 3/4″ 16 300 200
38040100 40 x 1″ 16 250 180
38050012 50 x 1/2″ 16 120 85
38050034 50 x 3/4″ 16 120 85
38050100 50 x 1″ 16 120 85
38050114 50 x 1 1/4″ 16 110 80
38050112 50 x 1 1/2″ 16 110 80
38063012 63 x 1/2″ 16 90 85
38063034 63 x 3/4″ 16 90 85
38063100 63 x 1″ 16 90 85
38063114 63 x 1 1/4″ 16 80 65
38063112 63 x 1 1/2″ 16 80 65
38063200 63 x 2″ 16 80 65
38075012 75 x 1/2″ 16 100 70
38075034 75 x 3/4″ 16 100 70
38075100 75 x 1″ 16 100 70
38075114 75 x 1 1/4″ 16 100 50
38075112 75 x 1 1/2″ 16 80 50
38075200 75 x 2″ 16 80 50
38090012 90 x 1/2″ 16 80 50
38090034 90 x 3/4″ 16 80 50
38090100 90 x 1″ 16 80 50
38090114 90 x 1 1/4″ 16 64 45
38090112 90 x 1 1/2″ 16 64 45
38090200 90 x 2″ 16 64 45
38110012 110 x 1/2″ 16 60 35
38110034 110 x 3/4″ 16 60 35
38110100 110 x 1″ 16 60 35
38110114 110 x 1 1/4″ 16 60 35
38110112 110 x 1 1/2″ 16 60 35
38110200 110 x 2″ 10 50 35
38110212 110 x 2 1/2″ 10 25 35
38110300 110 x 3″ 10 25 35
38125012 125 x 1/2″ 10 60 35
38125034 125 x 3/4″ 10 60 35
38125100 125 x 1″ 10 60 35
38125114 125 x 1 1/4″ 10 50 32
38125112 125 x 1 1/2″ 10 50 32
38125200 125 x 2″ 10 50 32
38140012 140 x 1/2″ 10 40 20
38140034 140 x 3/4″ 10 40 20
38140100 140 x 1″ 10 40 20
38140114 140 x 1 1/4″ 10 40 20
38140112 140 x 1 1/2″ 10 40 20
38140200 140 x 2″ 10 40 20
38160012 160 x 1/2″ 10 24 18
38160034 160 x 3/4″ 10 24 18
38160100 160 x 1″ 10 24 18
38160114 160 x 1 1/4″ 10 24 18
38160112 160 x 1 1/2″ 10 24 18
38160200 160 x 2″ 10 24 18
38160212 160 x 2 1/2″ 10 12 10
38160300 160 x 3″ 10 12 10
38200100 200 x 1″ 10 9 7
38200114 200 x 1 1/4″ 10 9 7
38200112 200 x 1 1/2″ 10 9 7
38200200 200 x 2″ 10 9 7
38225112 225 x 1 1/2″ 10 9 6
38225200 225 x 2″ 10 9 6
38250100 250 x 1″ 10 6 5
38250114 250 x 1 1/4″ 10 6 5
38250112 250 x 1 1/2″ 10 6 5
38250200 250 x 2″ 10 6 5
