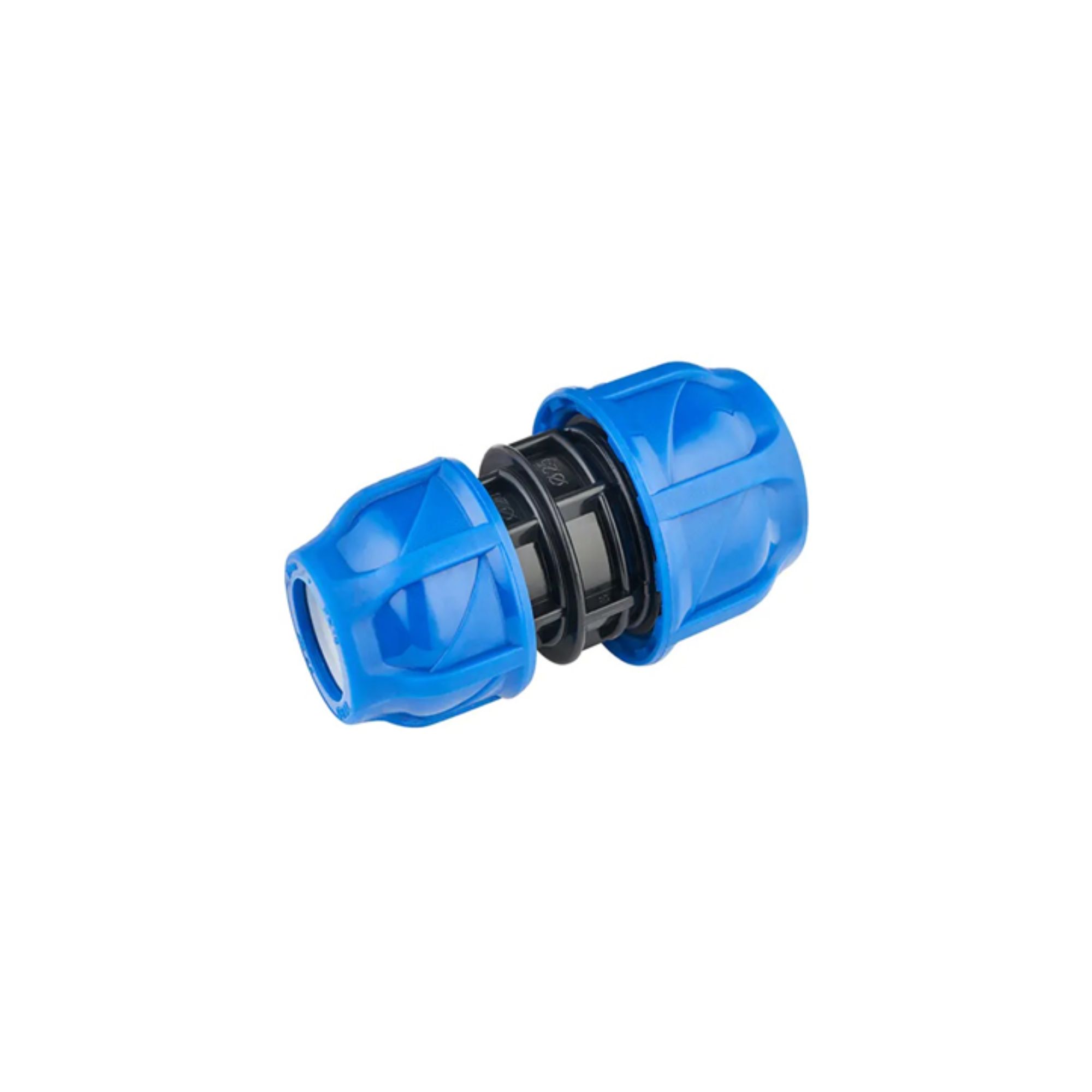

PP compression fittings are connectors for PE pipes used in water supply systems. They are suitable for both irrigation and drinking water applications. Gaia fittings range includes a wide variety of items designed to meet the diverse needs of plant engineering and installation requirements
Standard ISO 17885 / DIN 8076
| Code | Dia | PN | Price (Pc) | Box (Pcs) | Sacks (Pcs) |
|---|---|---|---|---|---|
| 16025020 | 25×20 | 16 | 100 | 100 | |
| 16032020 | 32×20 | 16 | 80 | 80 | |
| 16032025 | 32×25 | 16 | 75 | 80 | |
| 16040020 | 40×20 | 16 | 45 | 40 | |
| 16040025 | 40×25 | 16 | 45 | 40 | |
| 16040032 | 40×32 | 16 | 45 | 40 | |
| 16050020 | 50×20 | 16 | 25 | 25 | |
| 16050025 | 50×25 | 16 | 25 | 25 | |
| 16050032 | 50×32 | 16 | 25 | 25 | |
| 16050040 | 50×40 | 16 | 25 | 25 | |
| 16063025 | 63×25 | 16 | 20 | 20 | |
| 16063032 | 63×32 | 16 | 20 | 20 | |
| 16060040 | 63×40 | 16 | 20 | 20 | |
| 16063050 | 63×50 | 16 | 16 | 20 | |
| 16075032 | 75×32 | 16 | 9 | 12 | |
| 16075040 | 75×40 | 16 | 9 | 12 | |
| 16075050 | 75×50 | 16 | 9 | 9 | |
| 16075063 | 75×63 | 16 | 9 | 9 | |
| 16090032 | 90×32 | 16 | 15 | 8 | |
| 16090040 | 90×40 | 16 | 15 | 8 | |
| 16090050 | 90×50 | 16 | 15 | 8 | |
| 16090063 | 90×63 | 16 | 15 | 6 | |
| 16090075 | 90×75 | 16 | 12 | 6 | |
| 16110050 | 110×50 | 16 | 8 | 4 | |
| 16110063 | 110×63 | 16 | 8 | 4 | |
| 16110075 | 110×75 | 16 | 8 | 4 | |
| 16110090 | 110×90 | 16 | 6 | 3 | |
| 16125110 | 125×110 | 10 | 2 | 2 |
