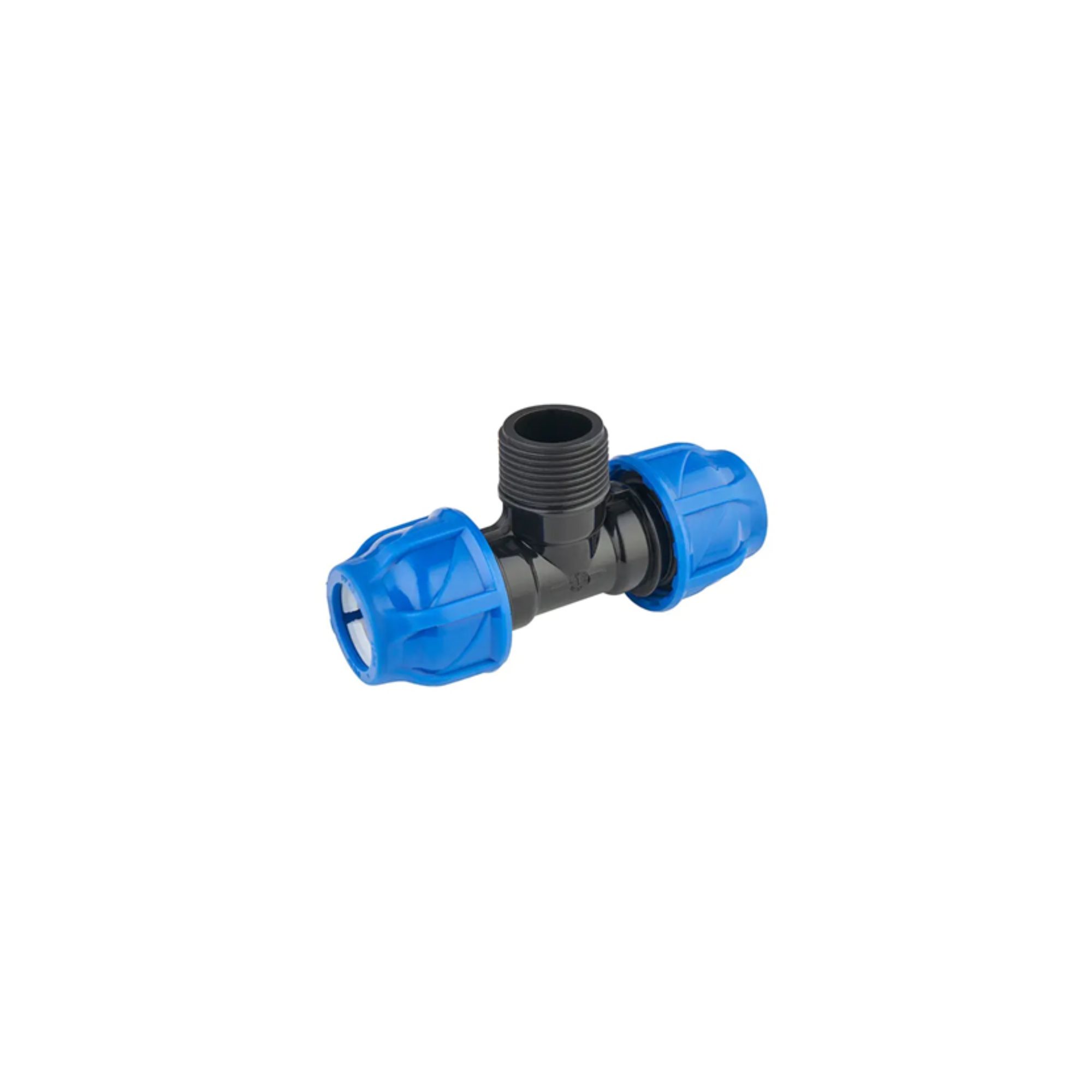

PP compression fittings are connectors for PE pipes used in water supply systems. They are suitable for both irrigation and drinking water applications. Gaia fittings range includes a wide variety of items designed to meet the diverse needs of plant engineering and installation requirements
Standard ISO 17885 / DIN 8076
| Code | Dia | PN | Price (Pc) | Box (Pcs) | Sacks (Pcs) |
|---|---|---|---|---|---|
| 21020012 | 20×1/2″x20 | 16 | 100 | 100 | |
| 21020034 | 20×3/4″x20 | 16 | 100 | 100 | |
| 21025012 | 25×1/2″x25 | 16 | 70 | 70 | |
| 21025034 | 25×3/4″x25 | 16 | 70 | 70 | |
| 21025100 | 25×1″x25 | 16 | 70 | 70 | |
| 21025114 | 25×1 1/4″ | 16 | 100 | 80 | |
| 21032012 | 32×1/2″ | 16 | 90 | 75 | |
| 21032034 | 32×3/4″x32 | 16 | 40 | 40 | |
| 21032100 | 32×1″x32 | 16 | 40 | 40 | |
| 21032114 | 32×11/4″x32 | 16 | 40 | 40 | |
| 21040100 | 40×1″x40 | 16 | 25 | 25 | |
| 21040114 | 40×1 1/4″x40 | 16 | 25 | 25 | |
| 21040112 | 40×1 1/2″x40 | 16 | 25 | 25 | |
| 21050100 | 50×1″x50 | 16 | 15 | 15 | |
| 21050114 | 50×1 1/4″x50 | 16 | 15 | 15 | |
| 21050112 | 50×1 1/2″x50 | 16 | 15 | 15 | |
| 21050200 | 50×2″x50 | 16 | 15 | 15 | |
| 21063100 | 63×1″x63 | 16 | 10 | 10 | |
| 21063114 | 63×1 1/4″x63 | 16 | 10 | 10 | |
| 21063112 | 63×1 1/2″x63 | 16 | 10 | 10 | |
| 21063200 | 63×2″x63 | 16 | 10 | 10 | |
| 21063212 | 63×2 1/2″x63 | 16 | 10 | 8 | |
| 21075200 | 75×2″x75 | 16 | 5 | 5 | |
| 21075212 | 75×2 1/2″x75 | 16 | 5 | 5 | |
| 21075300 | 75×3″x75 | 16 | 5 | 5 | |
| 21075400 | 75×4″x75 | 16 | 5 | 5 | |
| 21090200 | 90×2″x90 | 16 | 7 | 4 | |
| 21090212 | 90×2 1/2″x90 | 16 | 7 | 4 | |
| 21090300 | 90×3″x90 | 16 | 7 | 4 | |
| 21090400 | 90×4″x90 | 16 | 7 | 3 | |
| 21110212 | 110×2 1/2″x110 | 16 | 3 | 2 | |
| 21110900 | 110×3″x110 | 16 | 3 | 2 | |
| 21110400 | 110×4″x110 | 16 | 3 | 2 | |
| 21125500 | 125×5″x125 | 10 | 1 | 1 |
