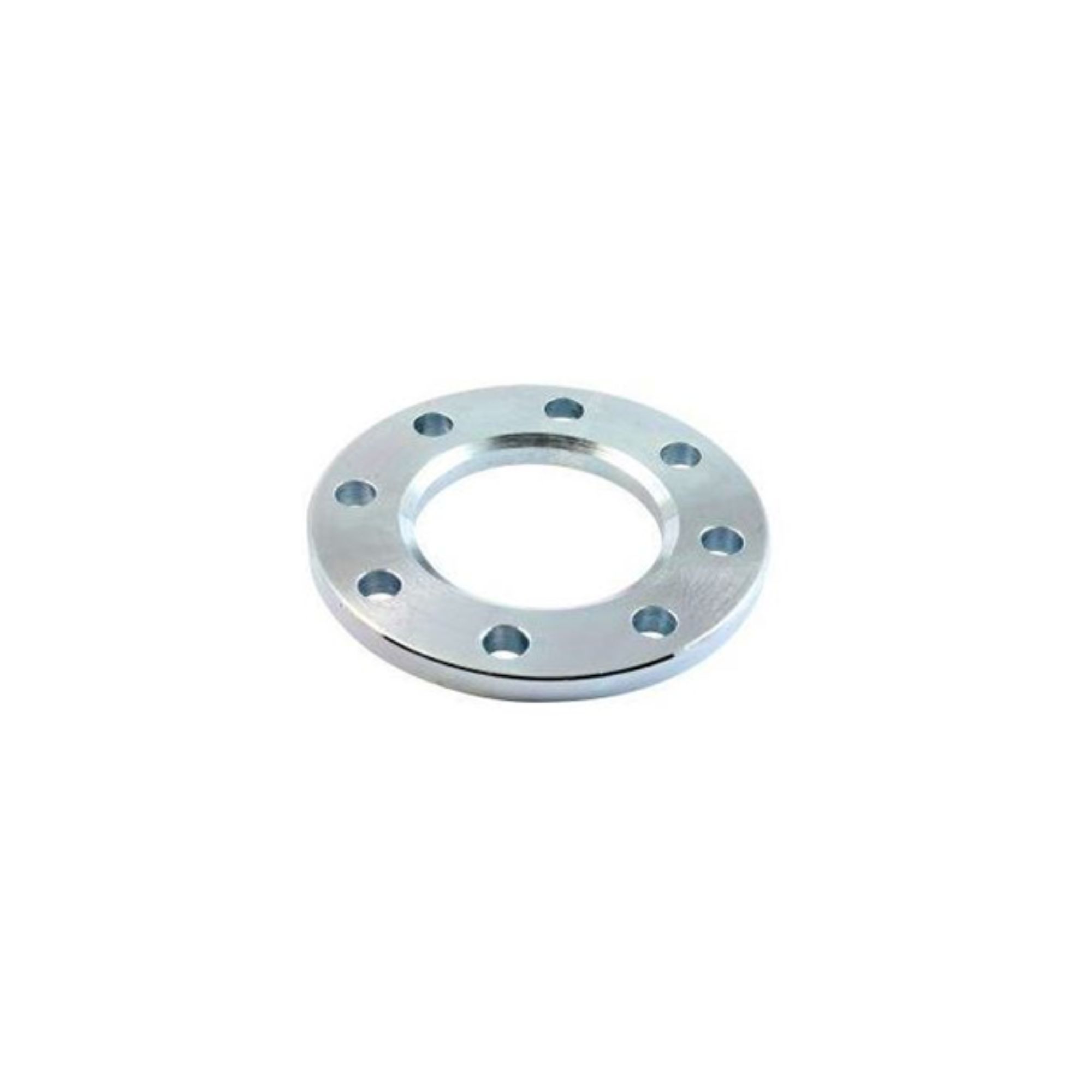

BACKUP RING ANSI 150LB

Technical Details

Material: Cast Iron (CI)

Available with Elctruglvanized and black epoxy for corrosion resistance

Pressure Rating: PN 6 – 10 – 16. 150LB – 300LB

Standards: EN1092 – ANSI

Description

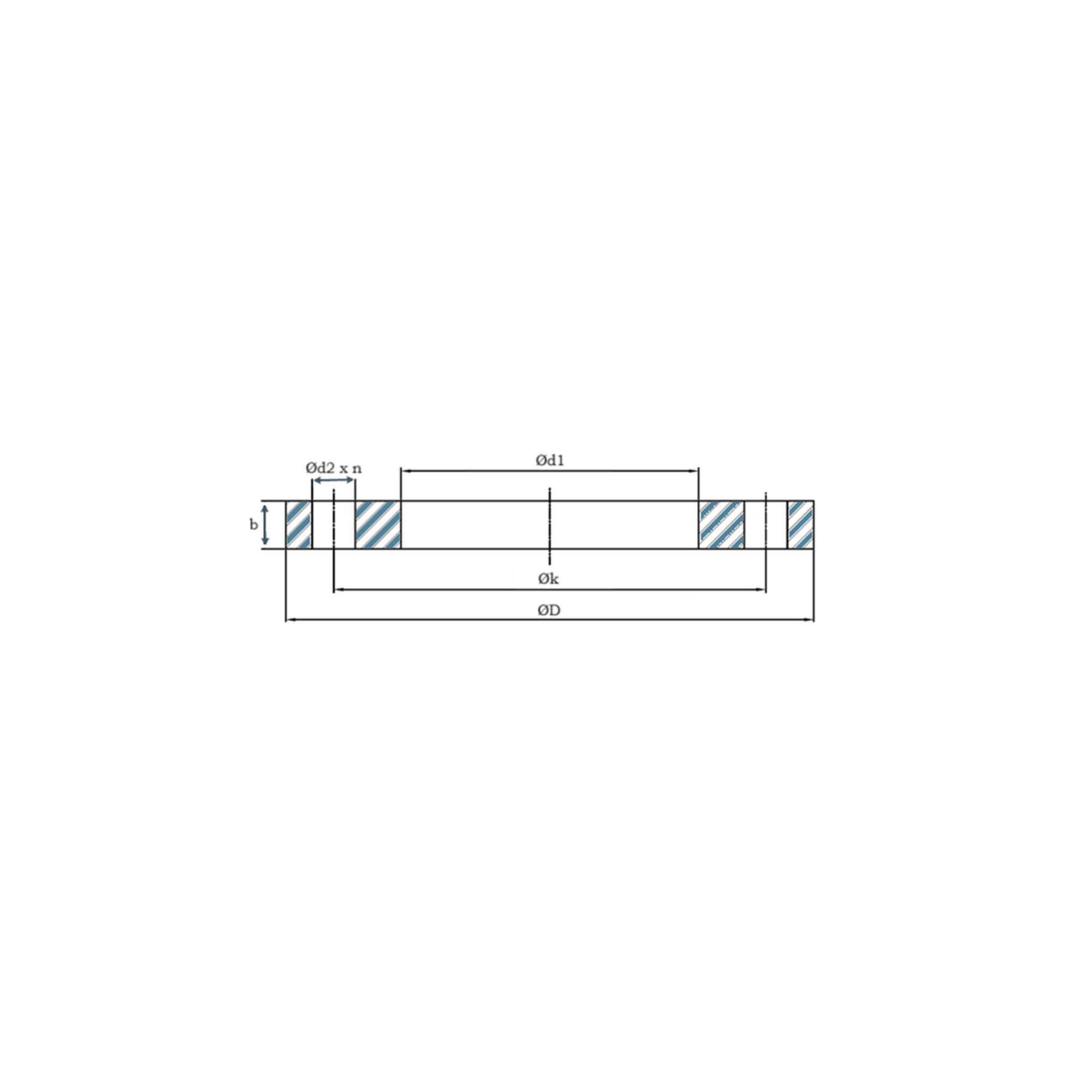

Flange Dimensions Table

DN	OD	d1	k	D	d2	n	b	Type
15	20	28	60	89	16	4	11	M14
20	25	34	70	99	16	4	12	M14
25	32	42	79	108	16	4	14	M14
32	40	51	89	117	16	4	15	M14
40	50	62	98	127	16	4	17	M14
50	63	78	121	152	19	4	19	M16
65	75	92	140	178	19	4	22	M16
80	90	108	152	190	19	4	23	M16
100	110	125	191	229	19	8	23	M16
100	125	135	191	229	19	8	23	M16
125	140	158	216	254	22	8	23	M20
150	160	178	241	279	22	8	25	M20
150	180	188	241	279	22	8	25	M20
200	200	235	298	343	22	8	28	M20
200	225	238	298	343	22	8	28	M20
250	250	288	362	406	26	12	30	M24
250	280	294	362	406	26	12	30	M24
300	315	338	432	483	26	12	31	M24
350	355	376	476	533	30	16	35	M27
400	400	430	540	597	30	16	35	M27
450	450	465	578	635	32	16	39	M30
500	500	533	635	698	32	20	42	M30
600	560	618	749	813	36	20	45	M33
600	630	545	749	813	36	20	45	M33
700	710	740	864	927	36	28	52	M33
800	800	843	978	1060	42	28	55	M39
900	900	947	1086	1168	42	32	60	M39
1000	1000	1050	1200	1289	42	36	63	M39
1200	1200	1250	1422	1511	42	44	69	M39
