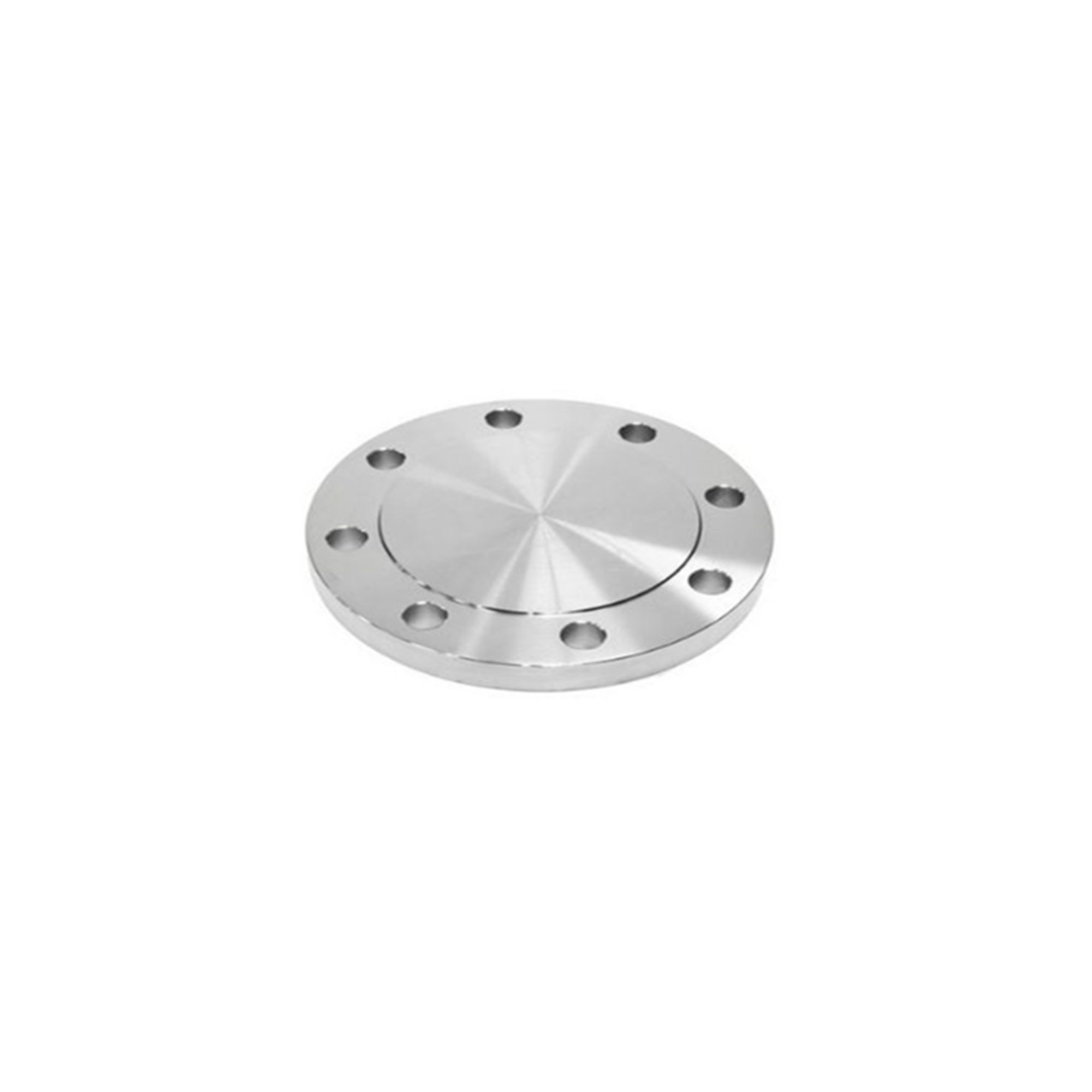

BLIND BACKUP RING TS EN 1092-1
Technical Details
Material: Cast Iron (CI)
Available with Elctruglvanized and black epoxy for corrosion resistance
Pressure Rating: PN 6 – 10 – 16. 150LB – 300LB
Standards: EN1092 – ANSI
Description

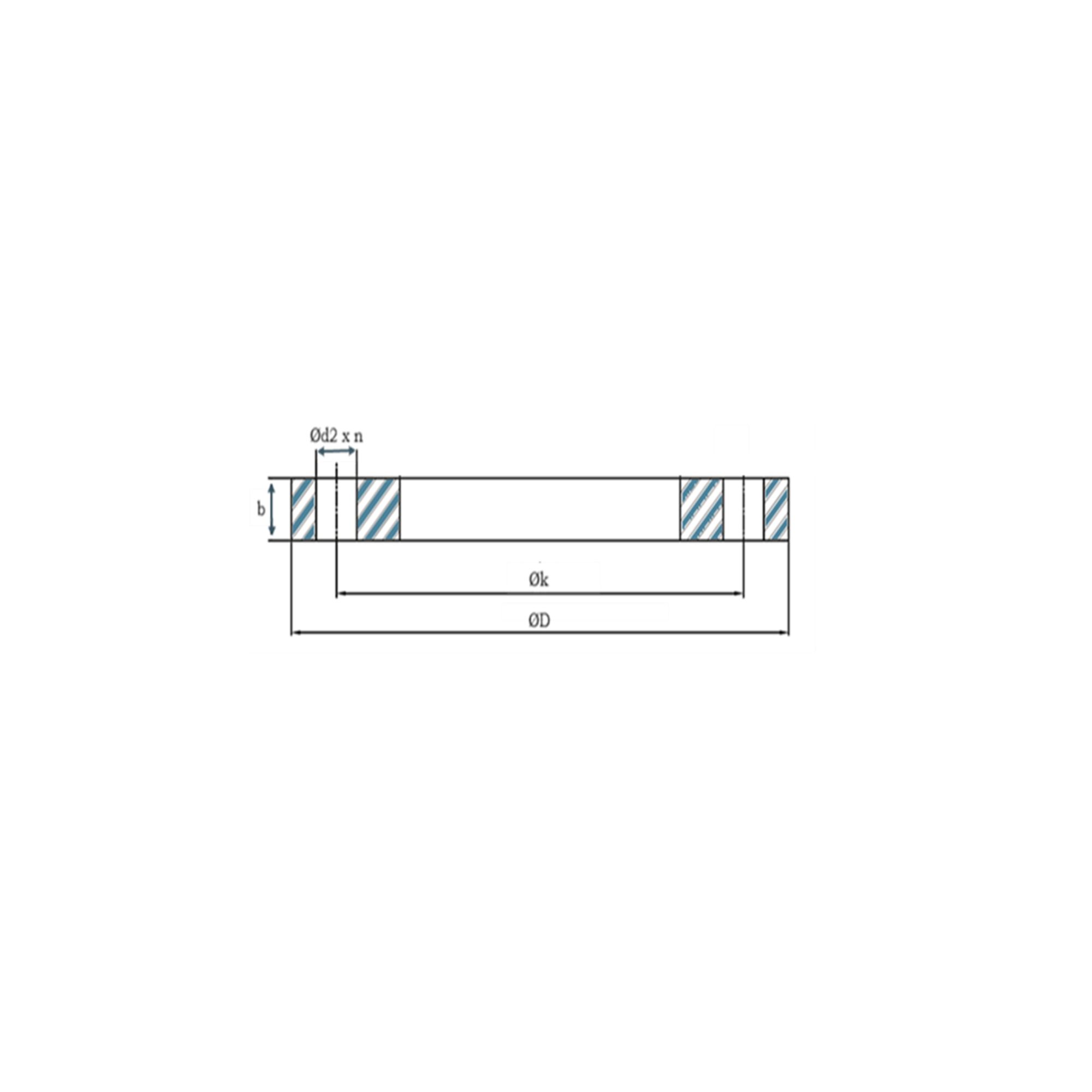

| Basic Dimensions | PN 6 | PN 10 | PN 16 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP | PE OD | k | D | d2 | n | b | Type | k | D | d2 | n | b | Type | k | D | n | b | Type | |
| 15 | 20 | 60 | 89 | 16 | 4 | 11 | M14 | 65 | 75 | 105 | 14 | 4 | 14 | M12 | 65 | 95 | 4 | 14 | M12 |
| 20 | 25 | 70 | 99 | 16 | 4 | 12 | M14 | 70 | 105 | 14 | 4 | 16 | M13 | 75 | 105 | 4 | 16 | M13 | |
| 25 | 32 | 79 | 108 | 16 | 4 | 14 | M14 | 65 | 115 | 14 | 4 | 16 | M12 | 65 | 115 | 4 | 16 | M12 | |
| 32 | 40 | 89 | 117 | 16 | 4 | 15 | M14 | 100 | 140 | 18 | 4 | 16 | M16 | 100 | 140 | 4 | 16 | M16 | |
| 40 | 50 | 98 | 127 | 16 | 4 | 17 | M14 | 110 | 150 | 18 | 4 | 16 | M16 | 110 | 150 | 4 | 16 | M16 | |
| 50 | 63 | 121 | 152 | 19 | 4 | 19 | M16 | 125 | 165 | 18 | 4 | 16 | M16 | 125 | 165 | 4 | 16 | M16 | |
| 65 | 75 | 140 | 178 | 19 | 4 | 22 | M16 | 116 | 195 | 18 | 4 | 16 | M16 | 145 | 165 | 8 | 16 | M16 | |
| 66 | 90 | 180 | 190 | 14 | 4 | 14 | M16 | 160 | 200 | 18 | 8 | 20 | M16 | 160 | 200 | 8 | 20 | M16 | |
| 100 | 110 | 170 | 210 | 18 | 4 | 16 | M16 | 180 | 220 | 18 | 8 | 20 | M16 | 180 | 220 | 8 | 20 | M16 | |
| 100 | 125 | 170 | 210 | 18 | 4 | 16 | M16 | 180 | 220 | 18 | 8 | 20 | M16 | 180 | 220 | 8 | 20 | M16 | |
| 125 | 140 | 200 | 240 | 18 | 8 | 18 | M16 | 210 | 250 | 18 | 8 | 22 | M16 | 210 | 250 | 8 | 22 | M16 | |
| 150 | 160 | 225 | 285 | 185 | 18 | 8 | 18 | M16 | 280 | 285 | 22 | 8 | 22 | M20 | 240 | 285 | 8 | 22 | M20 |
| 150 | 180 | 225 | 285 | 185 | 18 | 8 | 18 | M16 | 240 | 285 | 22 | 8 | 24 | M20 | 260 | 285 | 8 | 24 | M20 |
| 200 | 200 | 280 | 320 | 18 | 8 | 18 | 20 | M16 | 295 | 340 | 22 | 8 | 24 | M20 | 295 | 340 | 12 | 24 | M20 |
| 200 | 225 | 280 | 320 | 18 | 8 | 18 | 20 | M16 | 295 | 340 | 22 | 8 | 24 | M20 | 295 | 340 | 12 | 24 | M20 |
| 250 | 250 | 325 | 375 | 18 | 12 | 22 | M16 | 350 | 395 | 22 | 12 | 26 | M20 | 355 | 405 | 12 | 26 | M24 | |
| 250 | 325 | 375 | 175 | 18 | 12 | 22 | M16 | 350 | 395 | 22 | 12 | 26 | M20 | 355 | 405 | 12 | 26 | M24 | |
| 300 | 315 | 396 | 440 | 22 | 12 | 22 | M20 | 400 | 450 | 22 | 12 | 26 | M20 | 400 | 460 | 12 | 26 | M24 | |
| 350 | 355 | 445 | 440 | 22 | 12 | 22 | M20 | 400 | 505 | 22 | 16 | 26 | M20 | 410 | 520 | 16 | 30 | M24 | |
| 400 | 400 | 495 | 540 | 22 | 16 | 22 | M20 | 515 | 565 | 26 | 16 | 26 | M24 | 525 | 560 | 16 | 32 | M27 | |
| 450 | 450 | 550 | 595 | 22 | 16 | 24 | M20 | 565 | 615 | 26 | 20 | 28 | M24 | 585 | 640 | 20 | 34 | M27 | |
| 500 | 500 | 600 | 645 | 62 | 20 | 24 | M20 | 620 | 670 | 26 | 20 | 28 | M24 | 630 | 715 | 20 | 34 | M20 | |
| 600 | 560 | 706 | 755 | 26 | 20 | 24 | M24 | 725 | 760 | 30 | 20 | 28 | M27 | 770 | 640 | 20 | 36 | M33 | |
| 800 | 630 | 708 | 785 | 26 | 20 | 24 | M24 | 728 | 780 | 30 | 20 | 28 | M27 | 770 | 840 | 20 | 36 | M33 | |
| 700 | 710 | 810 | 800 | 26 | 24 | 24 | M24 | 840 | 695 | 30 | 24 | 30 | M27 | 840 | 910 | 24 | 36 | M33 | |
| 800 | 800 | 920 | 905 | 30 | 24 | 24 | M27 | 950 | 1035 | 33 | 24 | 32 | M 30 | 950 | 1025 | 24 | 38 | M35 | |
| 900 | 900 | 1020 | 1075 | 30 | 24 | 26 | M27 | 1050 | 1115 | 33 | 28 | 34 | M 30 | 1050 | 1125 | 28 | 40 | M36 | |
| 1000 | 1000 | 11201 | 175 | 30 | 28 | 26 | M27 | 1160 | 1220 | 36 | 28 | 34 | M 33 | 1170 | 1255 | 28 | 42 | M39 | |
| 1200 | 1200 | 1340 | 1405 | 33 | 32 | 28 | M30 | 1360 | 1455 | 39 | 32 | 38 | M 35 | 1390 | 1465 | 32 | 46 | M45 | |
| 1400 | 1400 | 160 | 630 | 36 | 36 | 32 | M33 | 1590 | 1675 | 42 | 36 | 42 | M39 | 1590 | 1685 | 36 | 52 | M45 | |
| 16001 | 1600 | 1700 | 1820 | 36 | 40 | 32 | M33 | 1820 | 1915 | 48 | 40 | 46 | M45 | 1820 | 1930 | 40 | 58 | M52 | |
