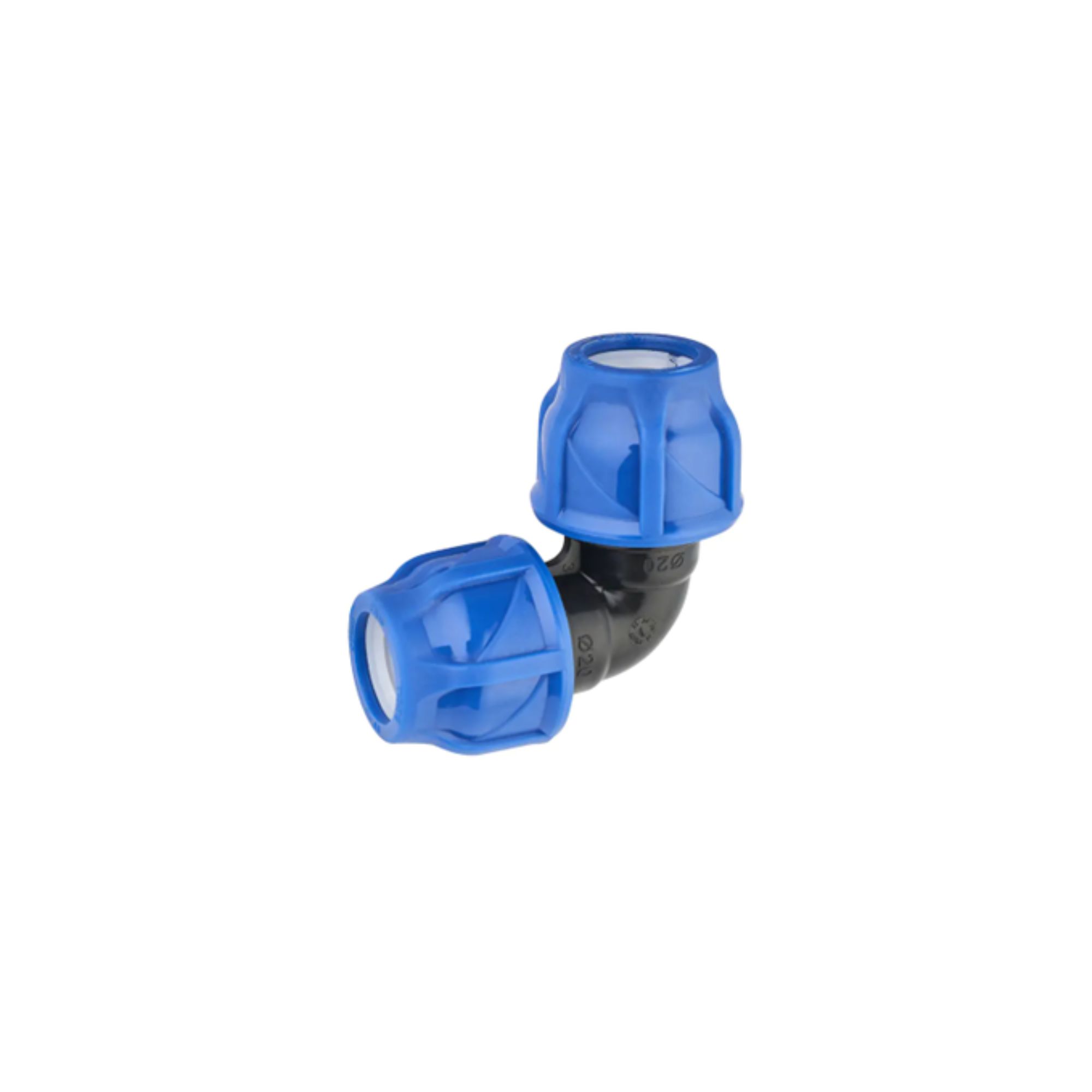

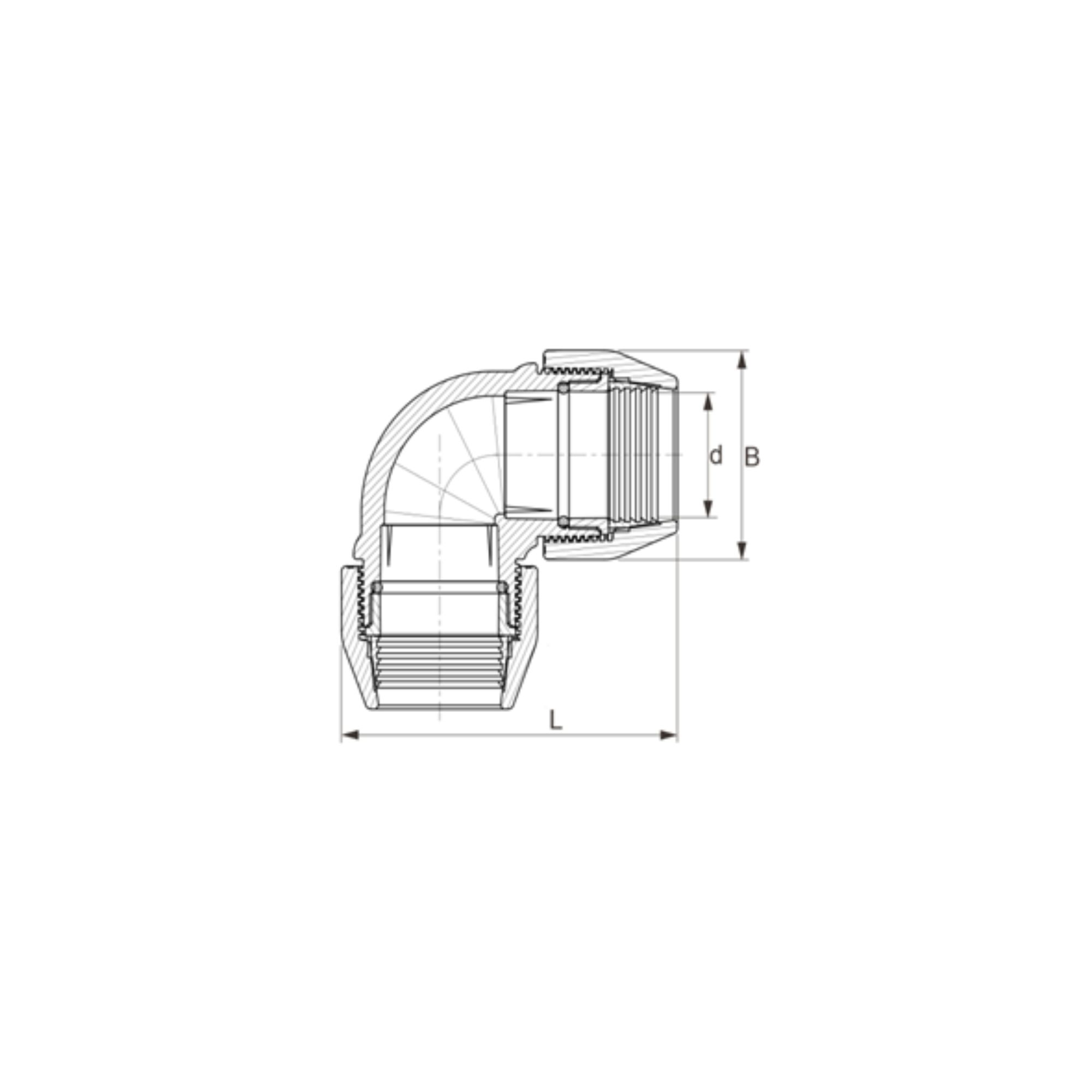

Coupling Elbow 90°
Technical Details
PP compression fittings are connectors for PE pipes used in water supply systems. They are suitable for both irrigation and drinking water applications. Gaia fittings range includes a wide variety of items designed to meet the diverse needs of plant engineering and installation requirements
Standard ISO 17885 / DIN 8076
Description
| Code | Dia | PN | Box (Pcs) | Sacks (Pcs) |
|---|---|---|---|---|
| 14020020 | 20 | 16 | 130 | 130 |
| 14025025 | 25 | 16 | 80 | 80 |
| 14032032 | 32 | 16 | 50 | 50 |
| 14040040 | 40 | 16 | 25 | 25 |
| 14050050 | 50 | 16 | 15 | 15 |
| 14063063 | 63 | 16 | 10 | 8 |
| 14075075 | 75 | 16 | 6 | 6 |
| 14090090 | 90 | 16 | 8 | 4 |
| 14110110 | 16 | 4 | 110 | 2 |
| 14125125 | 125 | 10 | 3 | 2 |
