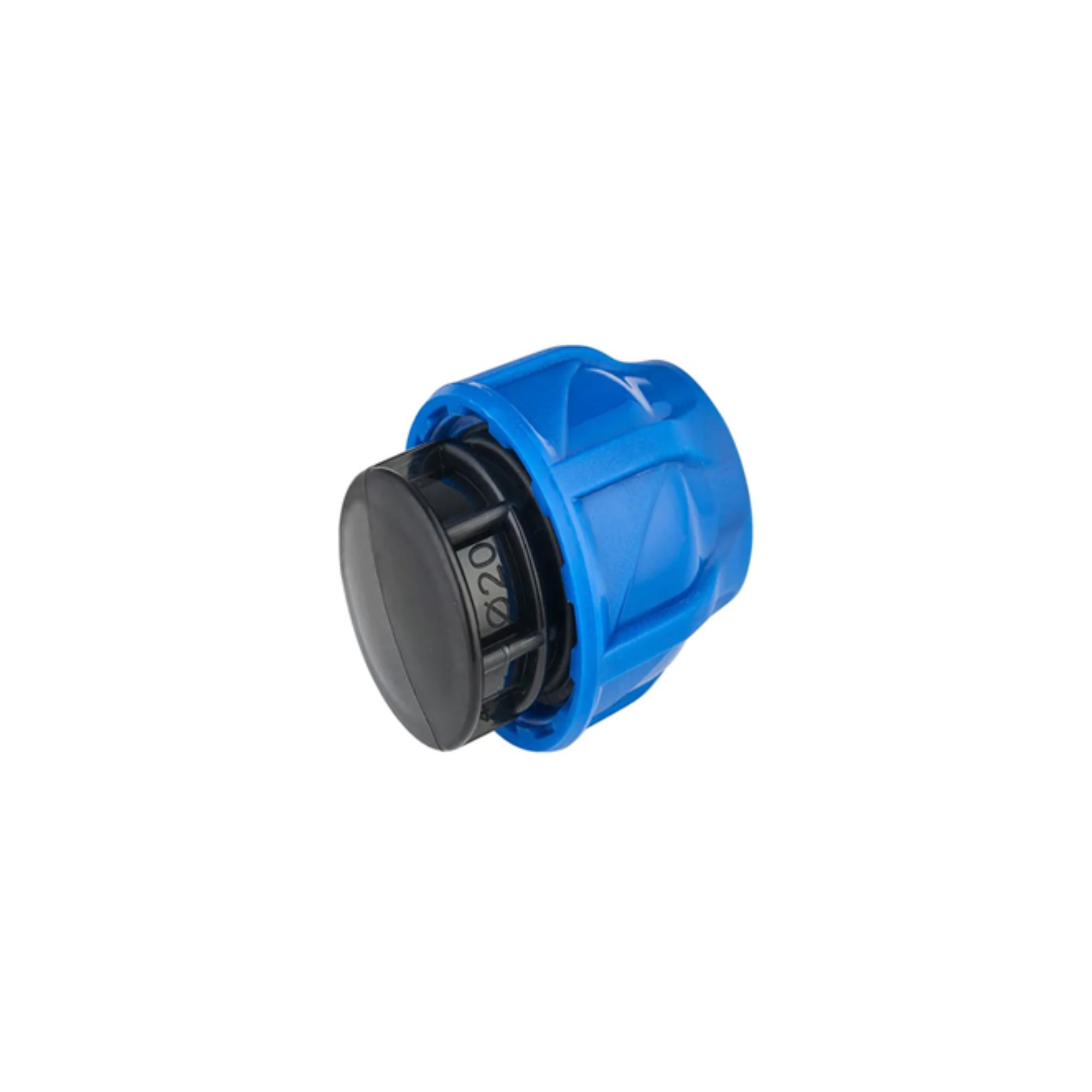

End Cap
Technical Details
PP compression fittings are connectors for PE pipes used in water supply systems. They are suitable for both irrigation and drinking water applications. Gaia fittings range includes a wide variety of items designed to meet the diverse needs of plant engineering and installation requirements
Standard ISO 17885 / DIN 8076
Description
| Code | Dia | PN | Box (Pcs) | Sacks (Pcs) |
|---|---|---|---|---|
| 15020020 | 20 | 16 | 275 | 272 |
| 15025025 | 25 | 16 | 200 | 200 |
| 15032032 | 32 | 16 | 130 | 130 |
| 15040040 | 40 | 16 | 65 | 65 |
| 15050050 | 50 | 16 | 40 | 40 |
| 15063063 | 63 | 16 | 27 | 30 |
| 15075075 | 75 | 16 | 12 | 12 |
| 15090090 | 90 | 16 | 22 | 10 |
| 15110110 | 110 | 16 | 10 | 5 |
| 15125125 | 125 | 10 | 6 | 5 |
