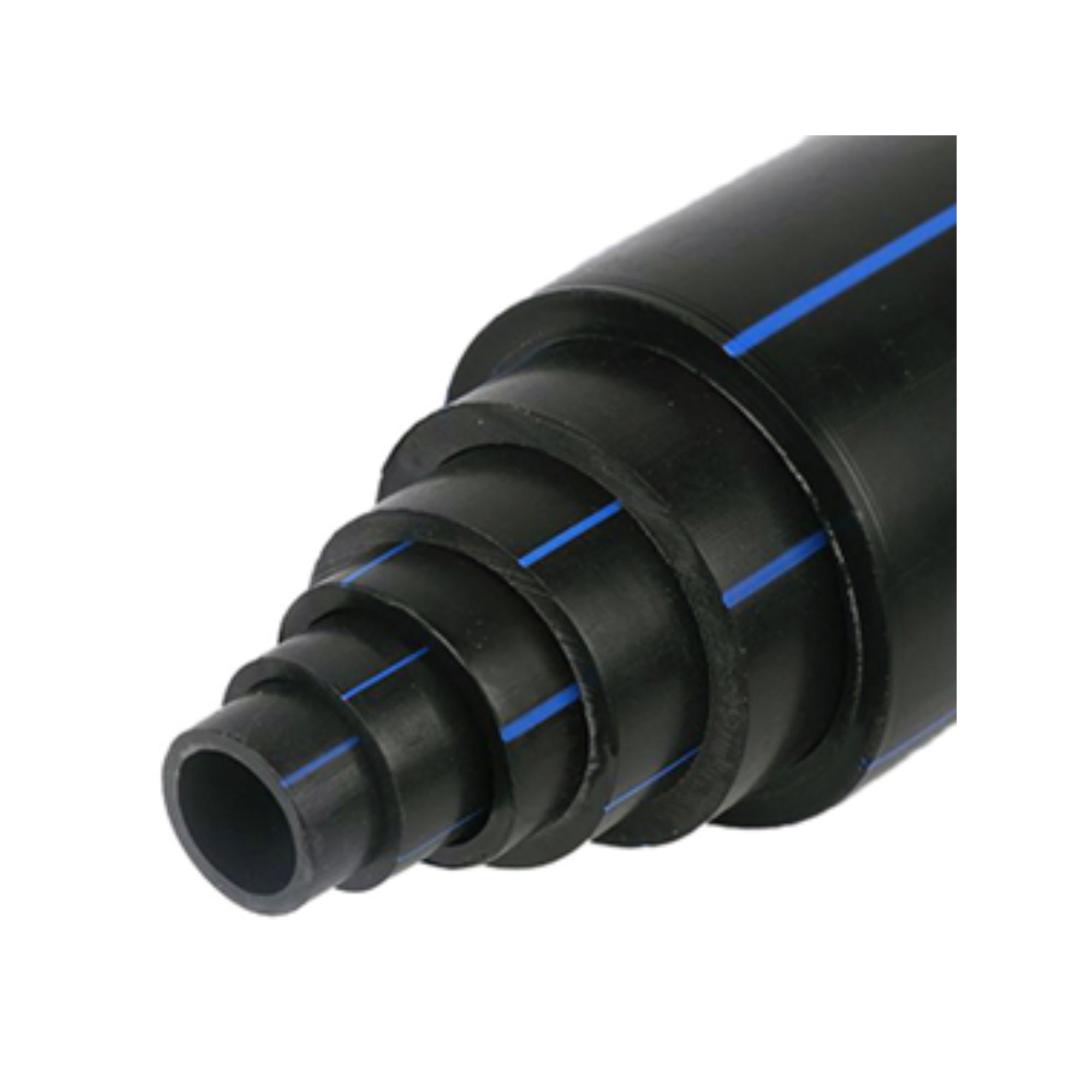

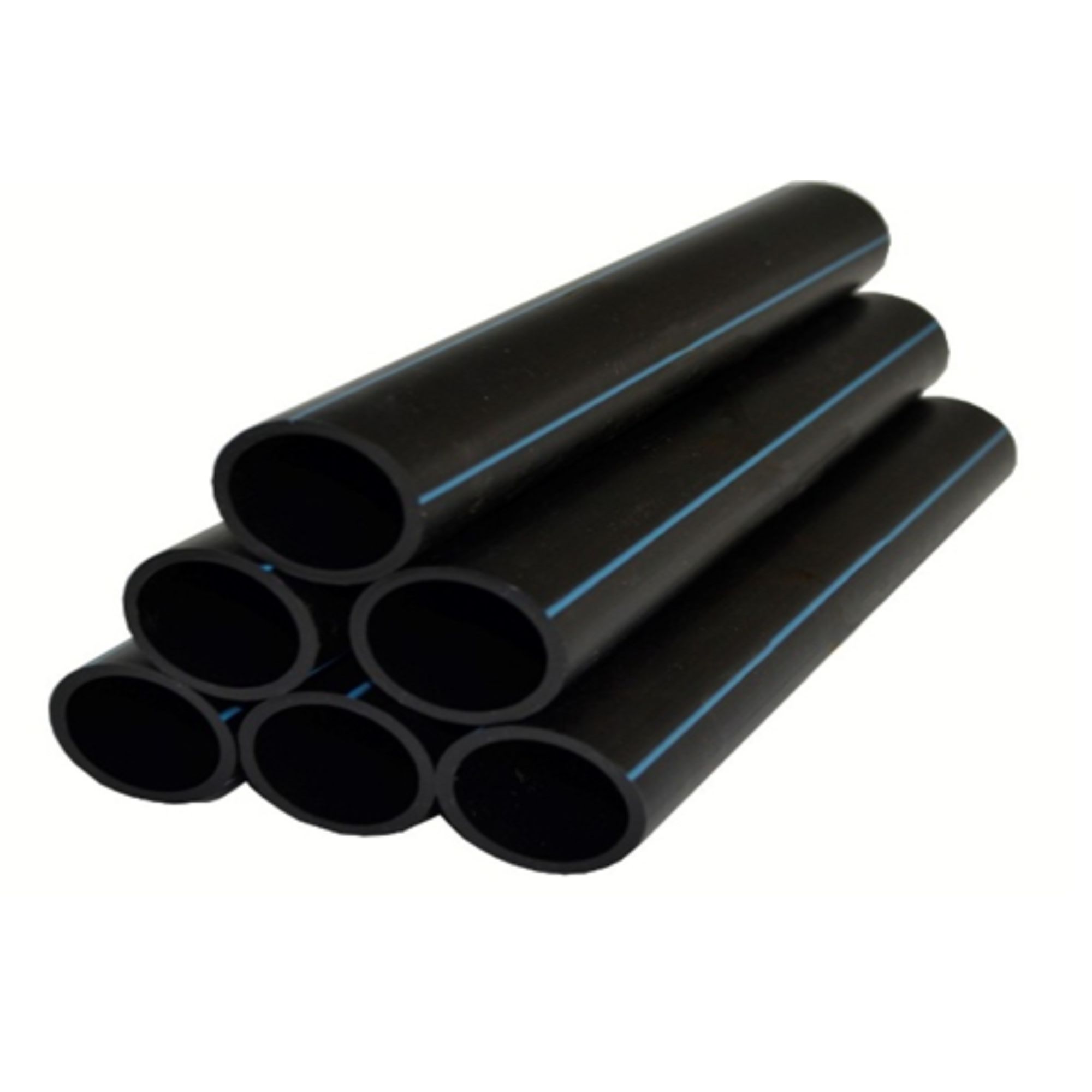

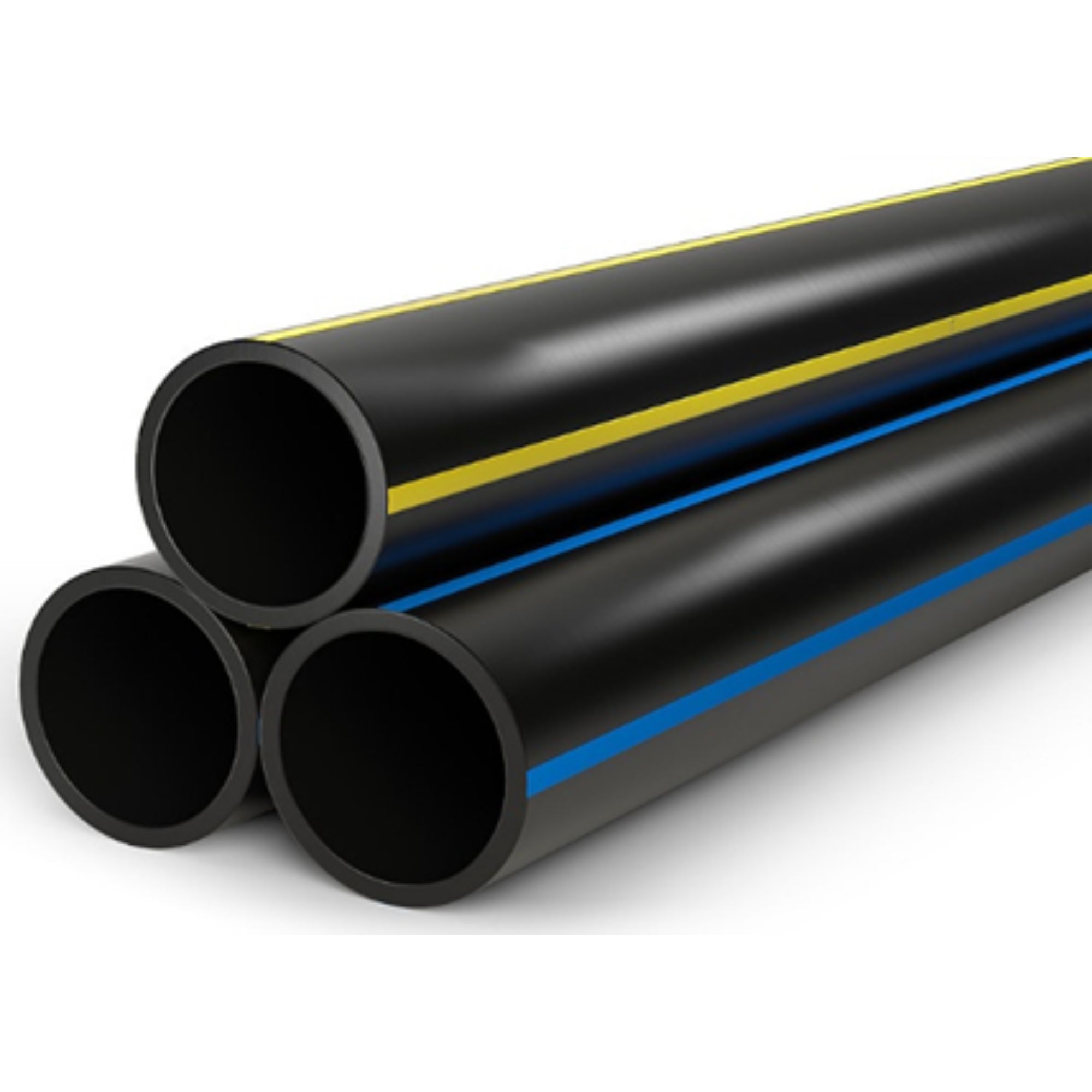

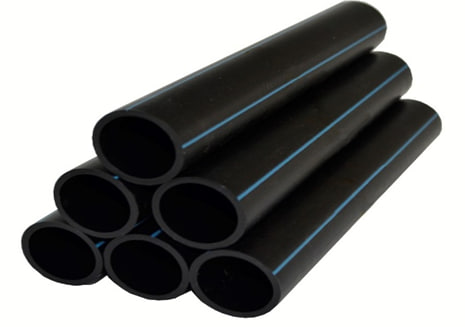

PE 100 Pipes
DELIVERING CLEAN WATER—AS PURE AS ITS SOURCE
PE 100 pipes come in a wide range of sizes, complemented by matching fittings and accessories, offering a complete, one-stop solution built to last. For more demanding environments.
Benefits
• Lightweight and flexible for easy transport and installation
• Corrosion-free and smooth interiors ensure long service life with minimal maintenance
• Exceptional resistance to extreme temperatures, UV exposure, seawater, and chemicals
Description
| OD | PN4 SDR41 | PN5 SDR33 | PN6 SDR26 | PN8 SDR21 | PN10 SDR17 | PN12,5 SDR13,6 | PN16 SDR11 | PN20 SDR9 | PN25 SDR7,4 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | S (mm) | Kg/m | |
| 20 | - | - | - | - | - | - | - | - | - | - | 2.00 | 0.15 | 2.00 | 0.11 | 2.30 | 0.13 | 21.90 | 0.15 |
| 25 | - | - | - | - | - | - | - | - | - | - | - | - | 2.30 | 0.17 | 3.00 | 0.22 | 3.50 | 0.24 |
| 32 | - | - | - | - | 26.00 | - | - | - | 2.00 | 0.19 | 2.40 | 0.23 | 3.00 | 0.27 | 3.60 | 0.33 | 4.40 | 0.39 |
| 40 | - | - | - | - | 2.00 | 0.31 | 2.00 | 0.24 | 2.40 | 0.30 | 3.00 | 0.36 | 3.70 | 0.43 | 4.50 | 0.51 | 5.50 | 0.60 |
| 50 | - | - | - | - | - | - | 2.40 | 0.36 | 3.00 | 0.48 | 3.70 | 0.55 | 4.60 | 0.67 | 5.60 | 0.79 | 6.90 | 0.94 |
| 63 | - | - | - | - | 2.50 | 0.49 | 3.00 | 0.57 | 3.80 | 0.76 | 4.70 | 0.87 | 5.80 | 1.05 | 7.10 | 1.26 | 8.60 | 1.47 |
| 75 | - | - | - | - | 2.90 | 0.68 | 3.60 | 0.81 | 4.50 | 1.08 | 5.60 | 1.24 | 6.80 | 1.47 | 8.40 | 1.76 | 10.30 | 2.09 |
| 90 | - | - | - | - | 3.50 | 0.98 | 4.30 | 1.16 | 5.40 | 1.53 | 6.70 | 1.77 | 8.20 | 2.12 | 10.10 | 2.54 | 12.30 | 3.00 |
| 110 | - | - | - | - | 4.20 | 1.43 | 5.30 | 1.74 | 6.60 | 2.27 | 8.10 | 2.62 | 10.00 | 3.14 | 12.30 | 3.78 | 15.10 | 4.49 |
| 125 | - | - | - | - | 4.80 | 1.84 | 6.00 | 2.20 | 7.40 | 2.76 | 9.20 | 3.37 | 11.40 | 4.08 | 14.00 | 4.87 | 17.10 | 5.77 |
| 140 | - | - | - | - | 5.40 | 2.32 | 6.70 | 2.80 | 8.30 | 3.46 | 10.30 | 4.22 | 12.70 | 5.08 | 15.70 | 6.11 | 19.20 | 7.25 |
| 160 | - | - | - | - | 6.20 | 3.04 | 7.70 | 3.68 | 9.50 | 4.52 | 11.80 | 5.50 | 14.60 | 6.67 | 17.90 | 7.96 | 21.90 | 9.44 |
| 180 | - | - | - | - | 6.90 | 3.79 | 8.60 | 4.63 | 10.70 | 5.71 | 13.30 | 6.98 | 16.40 | 8.42 | 20.10 | 10.10 | 24.60 | 11.90 |
| 200 | - | - | - | - | 7.70 | 4.69 | 9.60 | 5.73 | 11.90 | 7.05 | 14.70 | 8.56 | 18.20 | 10.40 | 22.40 | 12.40 | 27.40 | 14.80 |
| 225 | - | - | - | - | - | - | 8.60 | 5.89 | 10.80 | 7.26 | 13.40 | 8.93 | 16.60 | 10.90 | 20.50 | 13.10 | 25.20 | 15.80 |
| 250 | - | - | - | - | 9.60 | 7.30 | 11.90 | 8.90 | 14.80 | 11.00 | 18.40 | 13.40 | 22.70 | 16.20 | 27.90 | 19.40 | 34.20 | 23.00 |
| 280 | - | - | - | - | 10.70 | 9.10 | 13.40 | 11.22 | 16.60 | 13.70 | 20.60 | 16.80 | 25.40 | 20.30 | 31.30 | 24.30 | 38.30 | 28.90 |
| 315 | 7.70 | 7.52 | 9.70 | 9.40 | 12.10 | 11.60 | 15.00 | 14.13 | 18.70 | 17.40 | 23.20 | 21.20 | 28.60 | 25.60 | 35.20 | 30.80 | 43.10 | 36.50 |
| 355 | 8.70 | 9.55 | 10.90 | 11.80 | 13.60 | 14.60 | 16.90 | 17.94 | 21.10 | 22.10 | 26.10 | 26.90 | 32.20 | 32.50 | 39.70 | 39.10 | 48.50 | 46.30 |
| 400 | 9.80 | 12.10 | 12.30 | 15.10 | 15.30 | 18.60 | 19.10 | 22.84 | 23.70 | 28.00 | 29.40 | 34.10 | 36.30 | 41.30 | 44.70 | 49.60 | 54.70 | 58.80 |
| 450 | 11.00 | 15.30 | 13.80 | 19.00 | 17.20 | 23.50 | 21.50 | 28.90 | 26.70 | 35.40 | 33.10 | 43.20 | 40.90 | 52.30 | 50.30 | 62.70 | 61.50 | 74.40 |
| 500 | 12.30 | 19.00 | 15.30 | 23.90 | 19.10 | 28.90 | 23.90 | 35.70 | 29.70 | 43.80 | 36.80 | 53.30 | 45.40 | 64.50 | 55.80 | 77.30 | - | - |
| 560 | 13.70 | 23.60 | 17.20 | 29.40 | 21.40 | 36.20 | 26.70 | 44.70 | 33.20 | 54.80 | 41.20 | 66.90 | 50.80 | 80.80 | 62.50 | 97.00 | - | - |
| 630 | 15.40 | 29.90 | 19.30 | 37.10 | 24.10 | 45.90 | 30.00 | 56.50 | 37.40 | 69.40 | 46.30 | 84.60 | 57.20 | 102.00 | 70.30 | 125.00 | - | - |
| 710 | 17.40 | 38.00 | 21.80 | 47.20 | 27.20 | 58.40 | 33.90 | 72.00 | 42.10 | 88.00 | 52.20 | 107.00 | 64.50 | 130.00 | 79.30 | 160.00 | - | - |
| 800 | 19.60 | 48.10 | 24.50 | 59.70 | 30.60 | 73.90 | 38.10 | 91.20 | 47.40 | 112.00 | 58.80 | 136.00 | 72.60 | 166.00 | 89.30 | 202.00 | - | - |
| 900 | 22.00 | 60.90 | 27.60 | 75.60 | 34.40 | 93.40 | 42.90 | 115.00 | 53.30 | 141.00 | 66.10 | 173.00 | 81.70 | 210.00 | - | - | - | - |
| 1000 | 24.50 | 75.20 | 30.60 | 93.10 | 38.20 | 115.00 | 47.70 | 143.00 | 59.30 | 175.00 | 73.40 | 211.00 | 90.80 | 259.00 | - | - | - | - |
| 1200 | 29.40 | 108.00 | 36.70 | 134.00 | 45.90 | 166.00 | 57.20 | 205.00 | 71.10 | 262.00 | 88.20 | 304.00 | - | - | - | - | - | - |
| 1400 | 34.30 | 147.00 | 42.90 | 183.00 | - | - | 53.50 | 226.00 | 66.70 | 279.00 | 83.00 | 345.00 | 102.90 | 423.00 | - | - | - | - |
