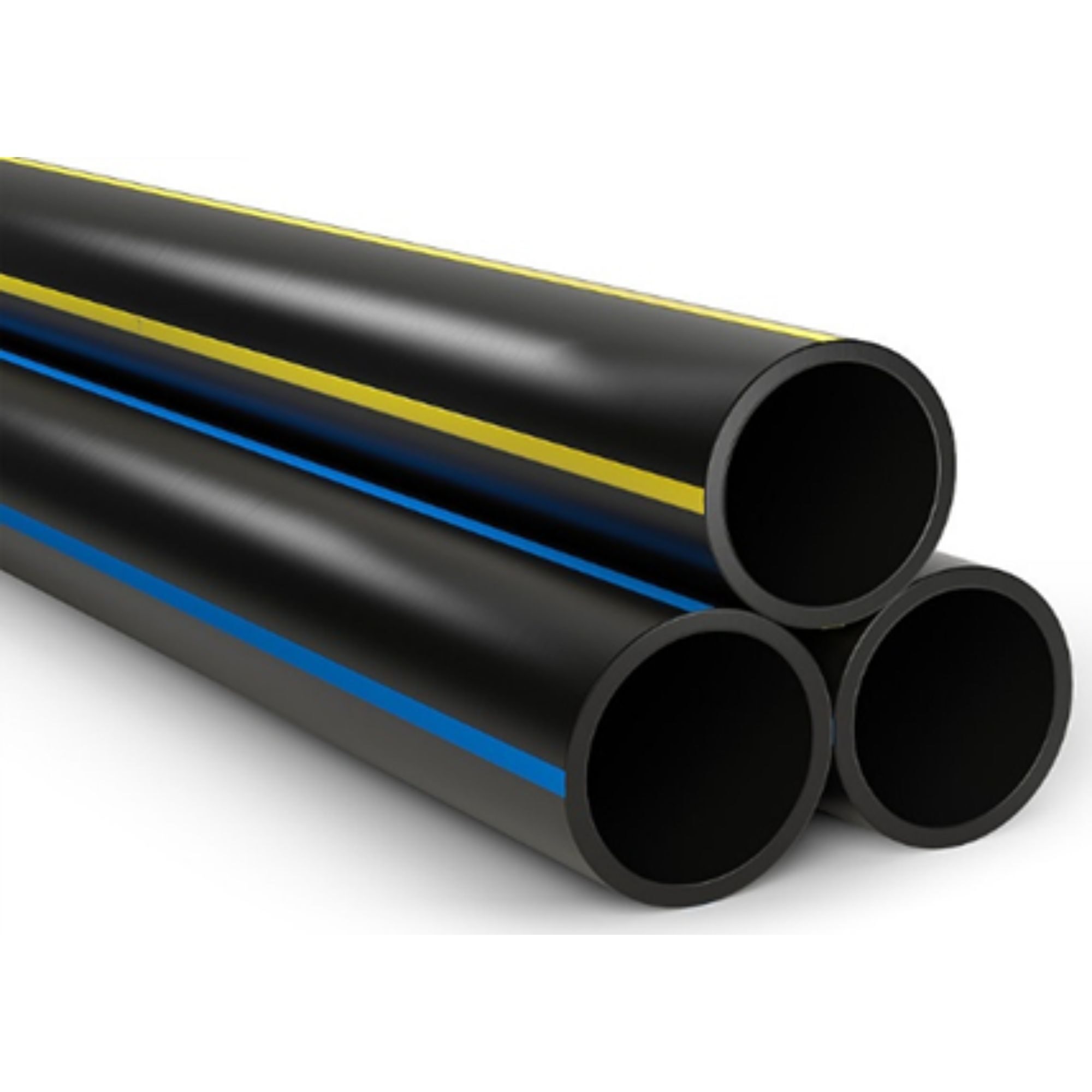

PE 100-RC Pipes

PE 100-RC, is the third-generation polyethylene or MRS 10 material, represents an advanced development in polyethylene technology. Produced through a modified polymerization process, these materials feature a tailored molar mass distribution, resulting in higher density and significantly enhanced mechanical properties—including greater stiffness and hardness.

High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black

Product properties

– High chemical resistance
– Outstanding processing parameters
– High strength and rigidity
– Extremely versatile

Description

OD PN4 SDR41
S (mm)		 PN4 SDR41
Kg/m		 PN5 SDR33
S (mm)		 PN5 SDR33
Kg/m		 PN6 SDR26
S (mm)		 PN6 SDR26
Kg/m		 PN8 SDR21
S (mm)		 PN8 SDR21
Kg/m		 PN10 SDR17
S (mm)		 PN10 SDR17
Kg/m		 PN12,5 SDR13,6
S (mm)		 PN12,5 SDR13,6
Kg/m		 PN16 SDR11
S (mm)		 PN16 SDR11
Kg/m		 PN20 SDR9
S (mm)		 PN20 SDR9
Kg/m		 PN25 SDR7,4
S (mm)		 PN25 SDR7,4
Kg/m
20 - - - - - - - - - - 2.00 0.15 2.30 0.17 3.00 0.22 3.50 0.24
25 - - - - 26.00 - - - 2.00 0.19 2.40 0.23 3.00 0.27 3.60 0.33 4.40 0.39
32 - - - - 26.00 - - - 2.00 0.19 2.40 0.23 3.00 0.27 3.60 0.33 4.40 0.39
40 - - - - - - 2.00 0.24 2.40 0.30 3.00 0.36 3.70 0.43 4.50 0.51 5.50 0.60
50 - - - - 2.00 0.31 2.40 0.36 3.00 0.48 3.70 0.55 4.60 0.67 5.60 0.79 6.90 0.94
63 - - - - 2.50 0.49 3.00 0.57 3.80 0.76 4.70 0.87 5.80 1.05 7.10 1.26 8.60 1.47
75 - - - - 2.90 0.68 3.60 0.81 4.50 1.08 5.60 1.24 6.80 1.47 8.40 1.76 10.30 2.09
90 - - - - 3.50 0.98 4.30 1.16 5.40 1.53 6.70 1.77 8.20 2.12 10.10 2.54 12.30 3.00
110 - - - - 4.20 1.43 5.30 1.74 6.60 2.27 8.10 2.62 10.00 3.14 12.30 3.78 15.10 4.49
125 - - - - 4.80 1.84 6.00 2.20 7.40 2.76 9.20 3.37 11.40 4.08 14.00 4.87 17.10 5.77
140 - - - - 5.40 2.32 6.70 2.80 8.30 3.46 10.30 4.22 12.70 5.08 15.70 6.11 19.20 7.25
160 - - - - 6.20 3.04 7.70 3.68 9.50 4.52 11.80 5.50 14.60 6.67 17.90 7.96 21.90 9.44
180 - - - - 6.90 3.79 8.60 4.63 10.70 5.71 13.30 6.98 16.40 8.42 20.10 10.10 24.60 11.90
200 - - - - 7.70 4.69 9.60 5.73 11.90 7.05 14.70 8.56 18.20 10.40 22.40 12.40 27.40 14.80
225 - - - - - - 8.60 5.89 10.80 7.26 13.40 8.93 16.60 10.90 20.50 13.10 25.20 15.80
250 - - - - - - 9.60 7.30 11.90 8.90 14.80 11.00 18.40 13.40 22.70 16.20 27.90 19.40
280 - - - - - - 10.70 9.10 13.40 11.22 16.60 13.70 20.60 16.80 25.40 20.30 31.30 24.30
315 7.70 7.52 9.70 9.40 - - 12.10 11.60 15.00 14.13 18.70 17.40 23.20 21.20 28.60 25.60 35.20 30.80
355 8.70 9.55 10.90 11.80 - - 13.60 14.60 16.90 17.94 21.10 22.10 26.10 26.90 32.20 32.50 39.70 39.10
400 9.80 12.10 12.30 15.10 - - 15.30 18.60 19.10 22.84 23.70 28.00 29.40 34.10 36.30 41.30 44.70 49.60
450 11.00 15.30 13.80 19.00 - - 17.20 23.50 21.50 28.90 26.70 35.40 33.10 43.20 40.90 52.30 50.30 62.70
500 12.30 19.00 15.30 23.40 - - 19.10 28.90 23.90 35.70 29.70 43.80 36.80 53.30 45.40 64.50 55.80 77.30
560 13.70 23.60 17.20 29.40 - - 21.40 36.20 26.70 44.70 33.20 54.80 41.20 66.90 50.80 80.80 62.50 97.00
630 15.40 29.90 19.30 37.10 - - 24.10 45.90 30.00 56.50 37.40 69.40 46.30 84.60 57.20 102.00 70.30 125.00
710 17.40 38.00 21.80 47.20 - - 27.20 58.40 33.90 72.00 42.10 88.00 52.20 107.00 64.50 130.00 79.30 160.00
800 19.60 48.10 24.50 59.70 - - 30.60 73.90 38.10 91.20 47.40 112.00 58.80 136.00 72.60 166.00 89.30 202.00
900 22.00 60.90 27.60 75.60 - - 34.40 93.40 42.90 115.00 53.30 141.00 66.10 173.00 81.70 210.00 - -
1000 24.50 75.20 30.60 93.10 - - 38.20 115.00 47.70 143.00 59.30 175.00 73.40 211.00 90.80 259.00 - -
1200 29.40 108.00 36.70 134.00 - - 45.90 166.00 57.20 205.00 71.10 262.00 88.20 304.00 - - - -
1400 34.30 147.00 42.90 183.00 - - 53.50 226.00 66.70 279.00 83.00 345.00 102.90 423.00 - - - -
