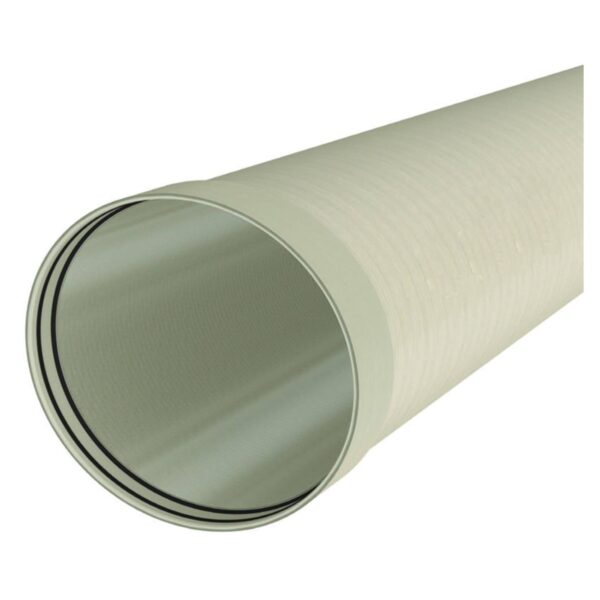

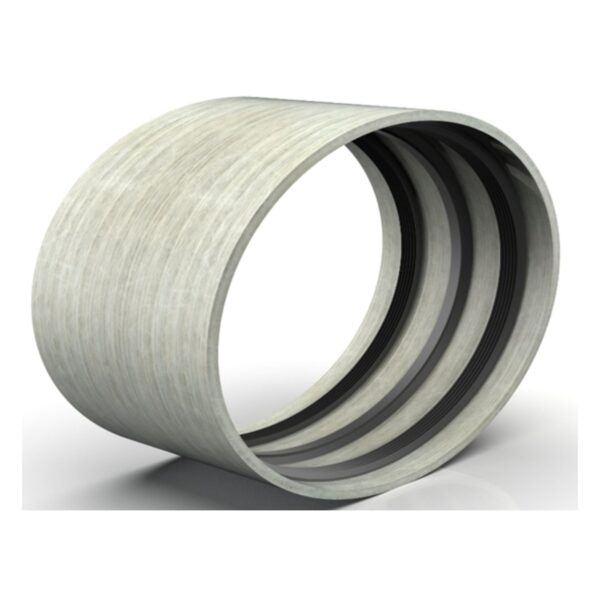

SN 10000 N/m²
Technical Details
Material: Polymer matrix and glass fibers.
Diameter (DN) : 200 – 4000mm
Rigidity (SN): 500 to 10.000 N/m²
Pressure (PN): 1 atm – 40 atm
Description
| DN | OD | PN 6 | PN 10 | PN 16 | PN 20 | PN 25 | PN 32 |
|---|---|---|---|---|---|---|---|
| 200 | 207 | 4.05 | 4.95 | 3.92 | 3.88 | 3.82 | 3.8 |
| 300 | 310 | 5.58 | 5.58 | 5.43 | 5.33 | 5.27 | 5.21 |
| 350 | 361 | 6.47 | 6.47 | 6.14 | 6.03 | 5.98 | 5.91 |
| 400 | 412 | 7.39 | 7.37 | 6.89 | 6.75 | 6.78 | 6.62 |
| 450 | 463 | 8.33 | 8.21 | 7.62 | 7.47 | 7.36 | 7.31 |
| 500 | 514 | 9.27 | 9.02 | 8.33 | 8.16 | 8.06 | 7.98 |
| 600 | 616 | 11.24 | 10.63 | 9.84 | 9.61 | 9.47 | 9.41 |
| 700 | 718 | 13.1 | 12.26 | 11.3 | 11.05 | 10.88 | 10.79 |
| 800 | 820 | 13.96 | 13.82 | 12.78 | 12.45 | 12.29 | 12.13 |
| 900 | 924 | 14.95 | 15.47 | 14.27 | 13.91 | 13.7 | 13.59 |
| 1000 | 1026 | 18.5 | 17.1 | 15.74 | 15.34 | 15.1 | 14.93 |
| 1100 | 1128 | 20.15 | 18.68 | 17.16 | 16.78 | 16.51 | 16.32 |
| 1200 | 1229 | 21.88 | 20.21 | 18.61 | 18.15 | 17.8 | 17.7 |
| 1300 | 1331.5 | 23.73 | 21.92 | 20.15 | 19.71 | 19.32 | 19.15 |
| 1400 | 1434 | 25.48 | 23.61 | 21.63 | 21.1 | 20.73 | 20.55 |
| 1500 | 1536 | 27.23 | 25.17 | 23.1 | 22.38 | 22.13 | 21.94 |
| 1600 | 1638 | 28.97 | 26.73 | 24.56 | 23.98 | 23.54 | 23.33 |
| 1700 | 1740 | 30.73 | 28.41 | 26.04 | 25.36 | 24.95 | 24.62 |
| 1800 | 1842 | 32.47 | 29.98 | 27.5 | 26.63 | 26.33 | 26.01 |
| 1900 | 1944 | 34.22 | 31.54 | 28.87 | 28.13 | 27.65 | 27.41 |
| 2000 | 2046 | 35.96 | 33.22 | 30.33 | 29.63 | 29.05 | 28.8 |
| 2100 | 2148 | 37.71 | 34.79 | 31.81 | 30.89 | 30.46 | 30.19 |
| 2200 | 2250 | 39.28 | 36.35 | 33.17 | 32.39 | 31.86 | 31.48 |
| 2300 | 2351 | 41.0 | 37.98 | 34.73 | 33.88 | 33.26 | 32.87 |
| 2400 | 2453 | 42.75 | 39.45 | 36.22 | 35.27 | 34.67 | 34.26 |
| 2500 | 2556 | 44.51 | 41.16 | 37.69 | 36.66 | 36.05 | 35.66 |
| 2600 | 2658 | 46.26 | 42.44 | 39.21 | 38.15 | 37.38 | 37.04 |
| 2700 | 2758 | 47.97 | 44.25 | 40.49 | 39.53 | 38.77 | 38.43 |
| 2800 | 2861 | 49.73 | 45.95 | 41.97 | 40.91 | 40.18 | 39.74 |
| 2900 | 2963 | 51.54 | 48.87 | 44.69 | 43.58 | 42.78 | 42.31 |
| 3000 | 3066 | 53.35 | 51.8 | 47.41 | 46.24 | 45.38 | 44.88 |
| 3100 | 3168 | 56.58 | 53.48 | 48.91 | 47.67 | 46.82 | 46.29 |
| 3200 | 3270 | 59.81 | 55.16 | 50.41 | 49.1 | 48.26 | 47.7 |
| 3300 | 3372 | 61.66 | 56.85 | 51.96 | 50.6 | 49.7 | 49.2 |
| 3400 | 3474 | 63.5 | 58.54 | 53.51 | 52.1 | 51.15 | 50.7 |
| 3500 | 3576 | 65.34 | 60.23 | 55.06 | 53.59 | 52.67 | 52.14 |
| 3600 | 3678 | 67.18 | 61.92 | 56.61 | 55.09 | 54.19 | 53.57 |
| 3700 | 3780 | 68.01 | 63.52 | 58.08 | 56.68 | 55.56 | 55.01 |
| 3800 | 3882 | 70.87 | 65.3 | 59.72 | 58.09 | 57.05 | 56.44 |
| 3900 | 3984 | 72.71 | 66.99 | 61.2 | 59.59 | 58.51 | 57.95 |
| 4000 | 4086 | 74.56 | 68.69 | 62.28 | 61.09 | 59.96 | 59.45 |
